EX8NPS-CF

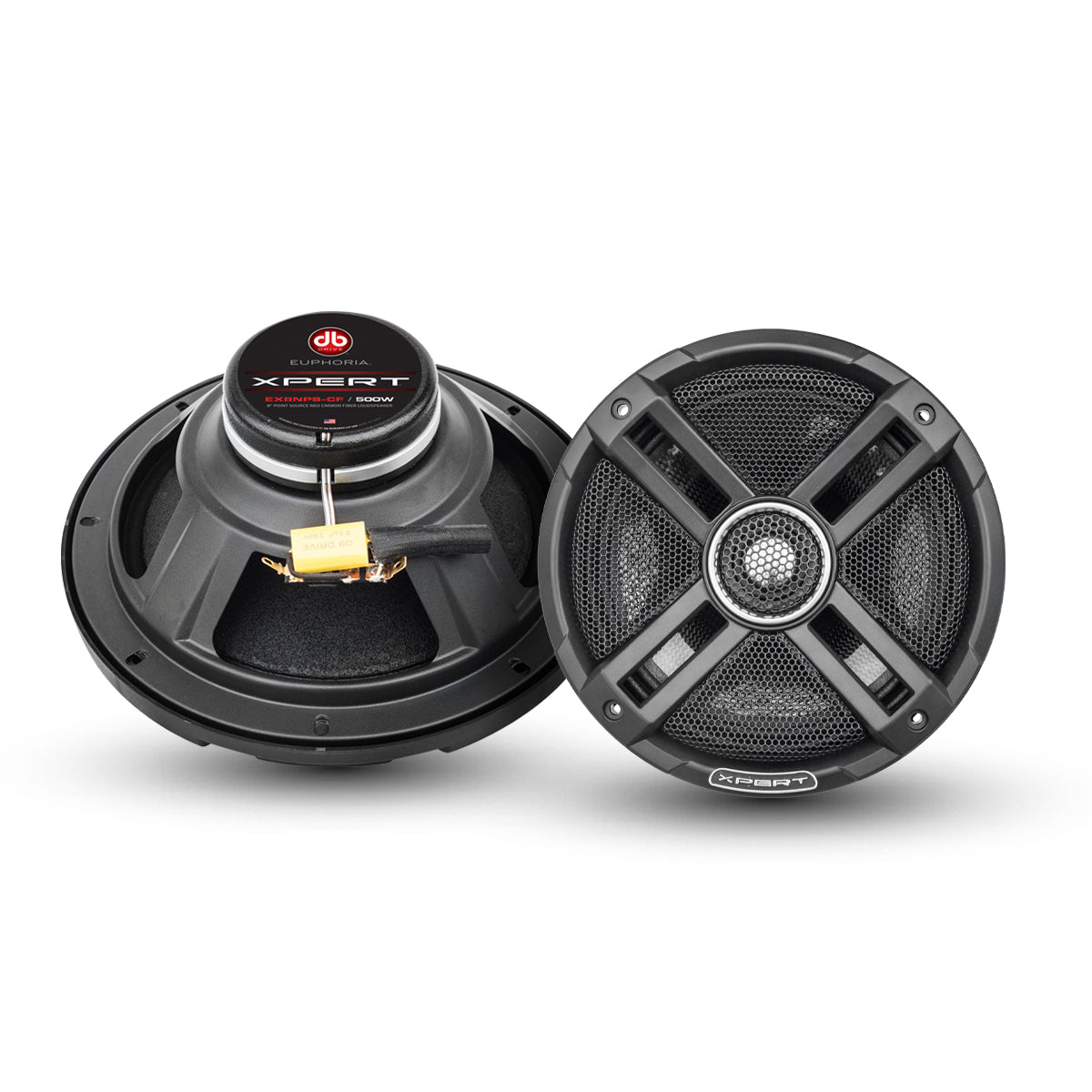

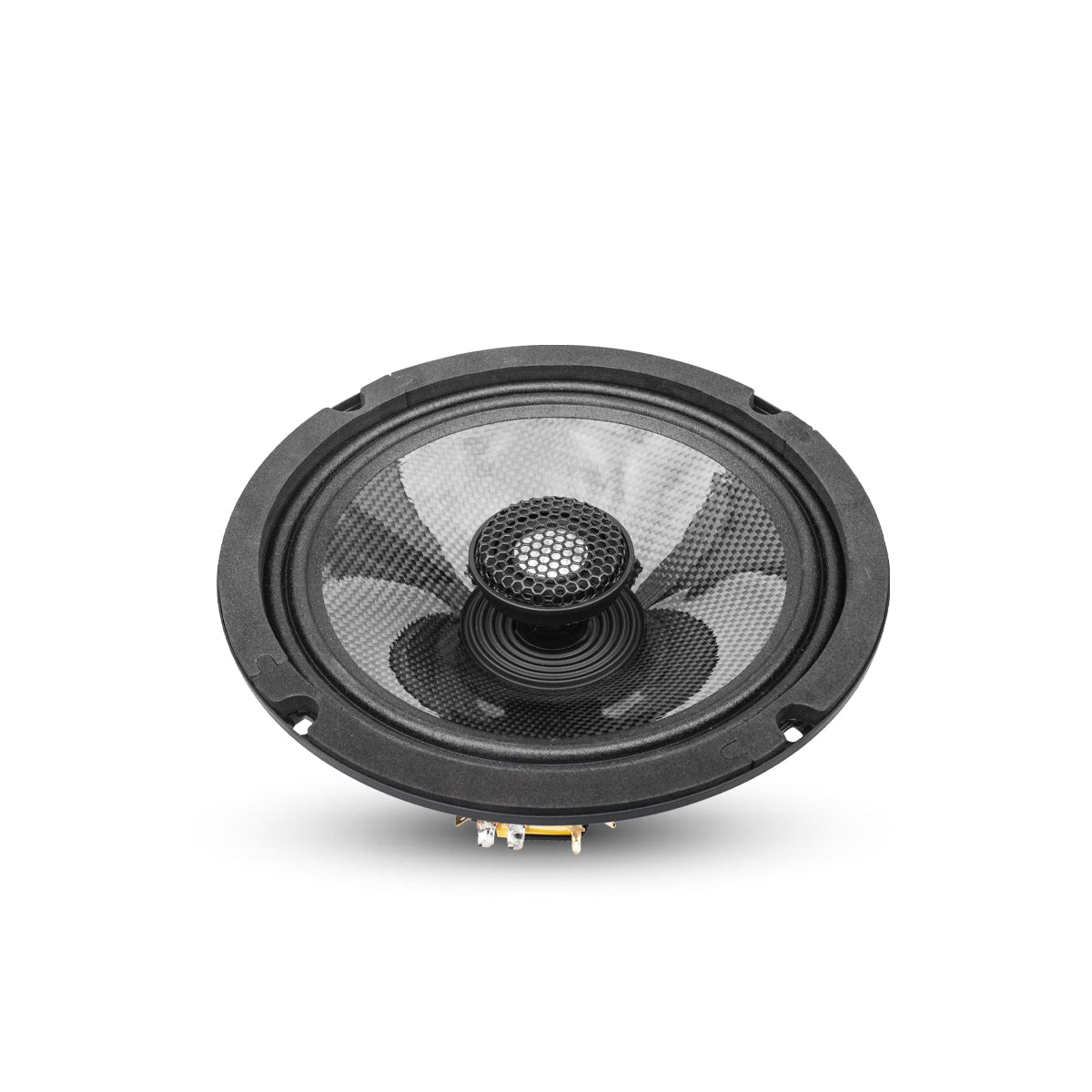

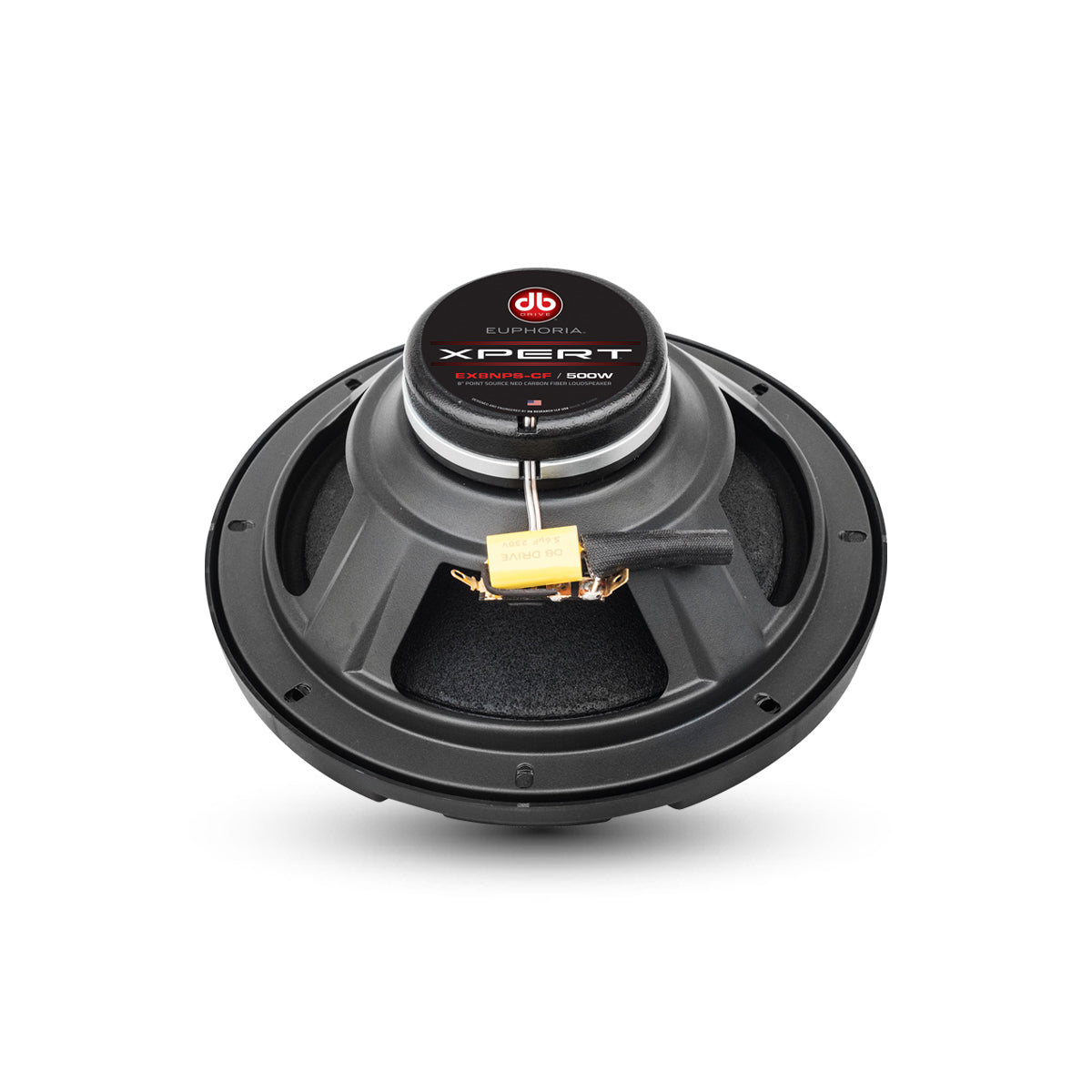

8″ Point Source NEO Carbon Fiber Loudspeaker
- 1.5″ (38.1mm) Midrange voice coil
- High-intensity NEO ring magnet
- IP65 rated weather resistant Carbon fiber cone
- Cloth surround
- Stamped steel basket
- Wide dispersion 1″ aluminum dome tweeter
- Protective grill
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 62.3Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 5.23 |
| Electrical Quality Factor (Qes) | 0.43 |
| Total Quality Factor (Qts) | 0.40 |
| Compliance Equivalent Volume (Vas) | 19.6L |
| Mechanical Compliance (Cms) | 0.28 mm/N |
| REPLACEMENT DIAPHRAGM: |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 275 Watts |
| Dynamic Wattage | 500 Watts |
| Sensitivity (1w/1m) | 92.3 dB |
| Frequency Response | 80Hz – 19KHz |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 3.09″ (78.50mm) |
| Cutout Diameter: | 7.08″ (180mm) |
**SOLD IN PAIRS
