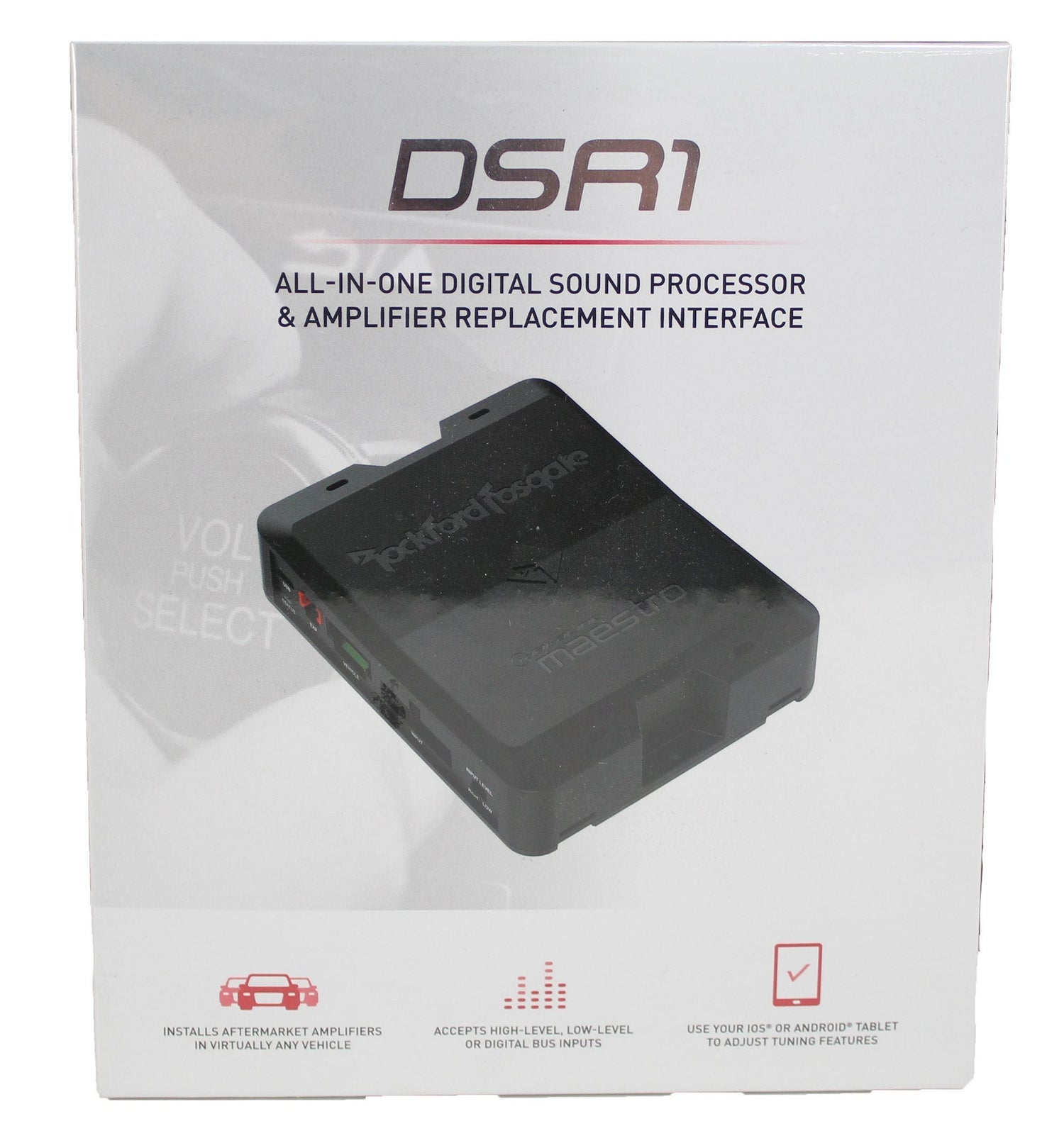

Rockford Fosgate All-In-One Digital Sound Processor & Amplifier Replacement DSR1

Rockford Fosgate All-In-One Digital Sound Processor & Amplifier Replacement DSR1

This listing includes:

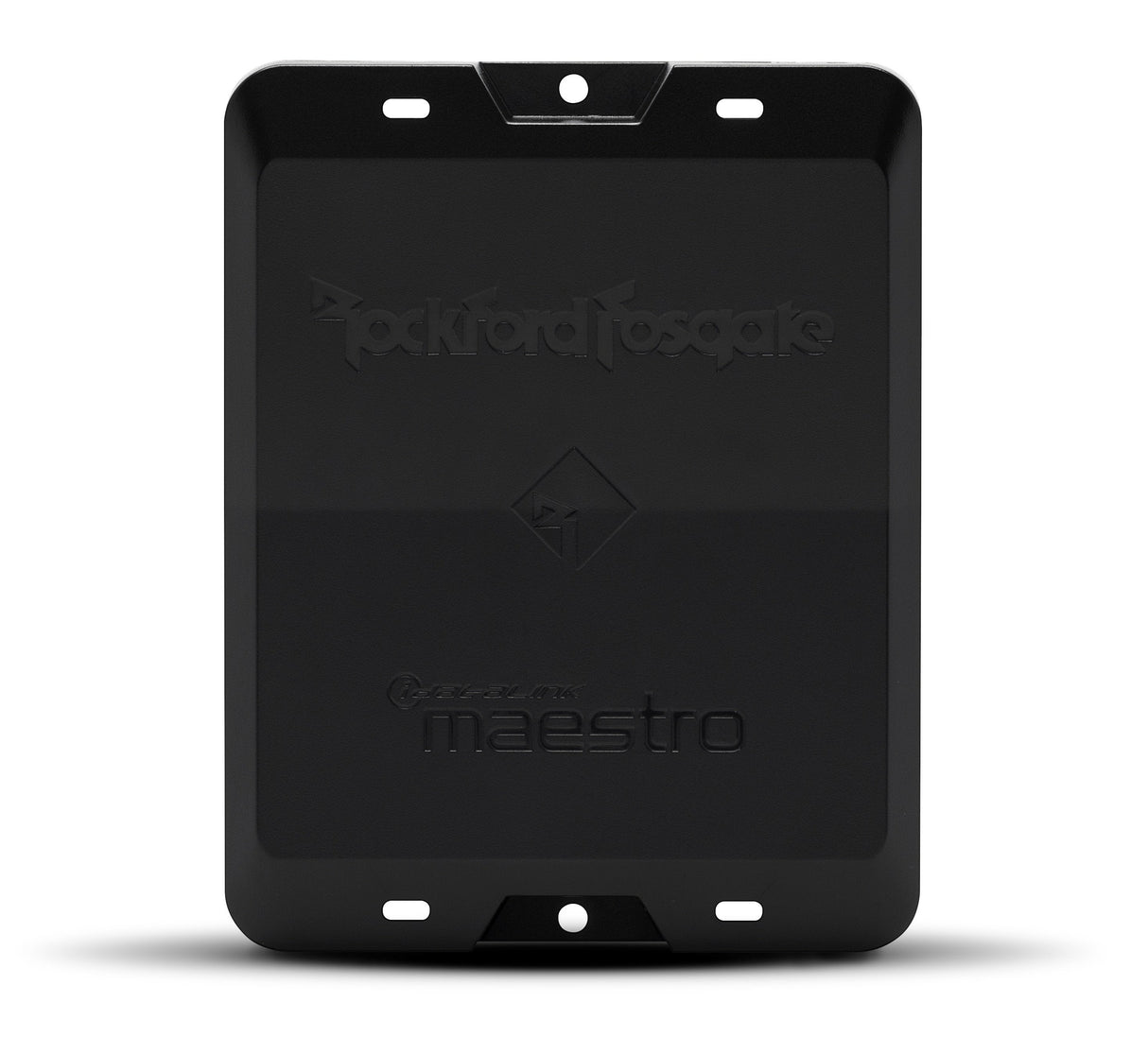

(1) DSR1 Digital Sound Processor

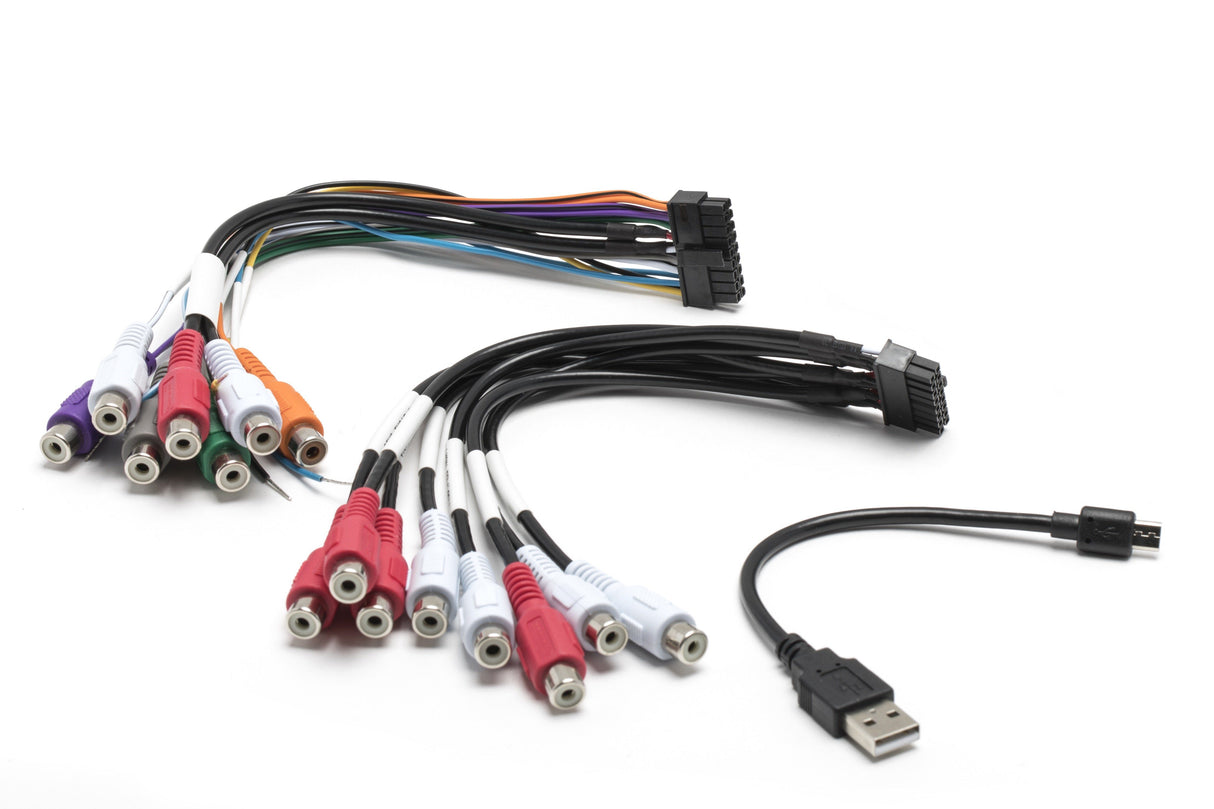

(1) 7" microUSB-to-USB cable
(1) 18-pin input harness
(1) 16-pin output harness
(1) Quick-Start Guide

Co-developed with iDatalink Maestro, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using the proprietary Rockford Fosgate PerfectTune software.

Download PerfectTune on the App Store or Google Play to control the DSR1.

The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.

After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.

Digital Signal Processing with Integrated Maestro CAN Interface
Four Channel Balanced Differential RCA Inputs
Four Channel High Level Inputs with Signal Sense Turn On
18 Pin Analog Input Harness
16 Pin Analog Output Harness
Micro USB Setup/Update Port
Designed for use with Select Maestro Vehicle T-Harnesses
Auxiliary RCA and SPDIF Coaxial Inputs
Optional PLC2 Level Controller with Assignable Functions
245 Bands of Equalization for Aftermarket Tuning
Adjustable crossovers with selectable slope
Up 10msec of delay on each channel for Time Alignment
Bluetooth 4.0 Connectivity for convenient setup
Interactive Tuning Interface Controlled via Android/ iOS APP
CE and FCC Compliant
1 Year Warranty

Features:
Digital Processor
Mounting: Behind Dash
Input Impedance: 20k Ohm
Output Impedance: 200 Ohm
Signal Input:
4 Balanced Differential RCA Inputs
4 High-Level Inputs w/ Signal Sense
2 AUX RCA Inputs
SPDIF Coaxial Input
Operating Voltage: 9-16 VDC
Frequency Response: 20Hz - 20kHz +/- 0.5dB
Signal Output: 8 RCA Outputs
Input Voltage:
Low Level (RCA): up to 4V
High Level: up to 12.5V
High Level Turn-On: 4V - 16V
AUX: up to 2V
Output Voltage: up to 4V RMS
Digital Signal Processing (DSP) Speed: 147 MIPS
Precision: 32-Bit
Accumulators: 72-bit
DAC Precision: 24-Bit
Dynamic Range: 108 dB
THD+N: -98 dB
ADC: Precision: 24-Bit
Dynamic Range: 105 dB
THD+N:-98 dB
Crossover Frequency: Variable: 20 Hz to 10 kHz
Crossover Slope: Selectable Slope: 6/12/18/24/30/36/48 dB/Octave
EQ Frequency Centers: Channels: Front/Spare/Rear/Sub
Frequency Bands: 31 per channel
Smartphone App: App Store / Google Play
Smartphone Compatibility:
APPLE: iOS 10.0 or later (iPhone, iPad, iPod touch)
ANDROID: Marshmallow 6.0 or later (optimized for 5-inch screen or larger)
EQ Frequency Controls: Selectable Q: 0.01 to 10.0
T-Harnesses Available: HRN-AR-F02, HRN-AR-F03, HRN-AR-CH2, HRN-AR-CH3, HRN-AR-CH4, HRN-AR-T01, HRN-AR-TO2, HRN-AR-TO3

Dimensions (H x W x D):
1.26" x 4.04" x 5.12"
(32 mm x 102.5 mm x 130 mm)
