MMATS MD1300X5

MD1300x5     5-channel Car Audio amplifier

SPECIFICATIONS:

• 100 Watts RMS x 4 @ 4 ohms stereo or 175 Watts RMS x 4 @ 2 ohms stereo
• Frequency response for the stereo channels (20Hz to 20Khz +-3dB)
• 5^Th channel is 650 watts RMS @ 1 ohm or 380 watts RMS at 2 ohms
• Bridged power on the front channels is 2 x 350 watts RMS at 4 ohms

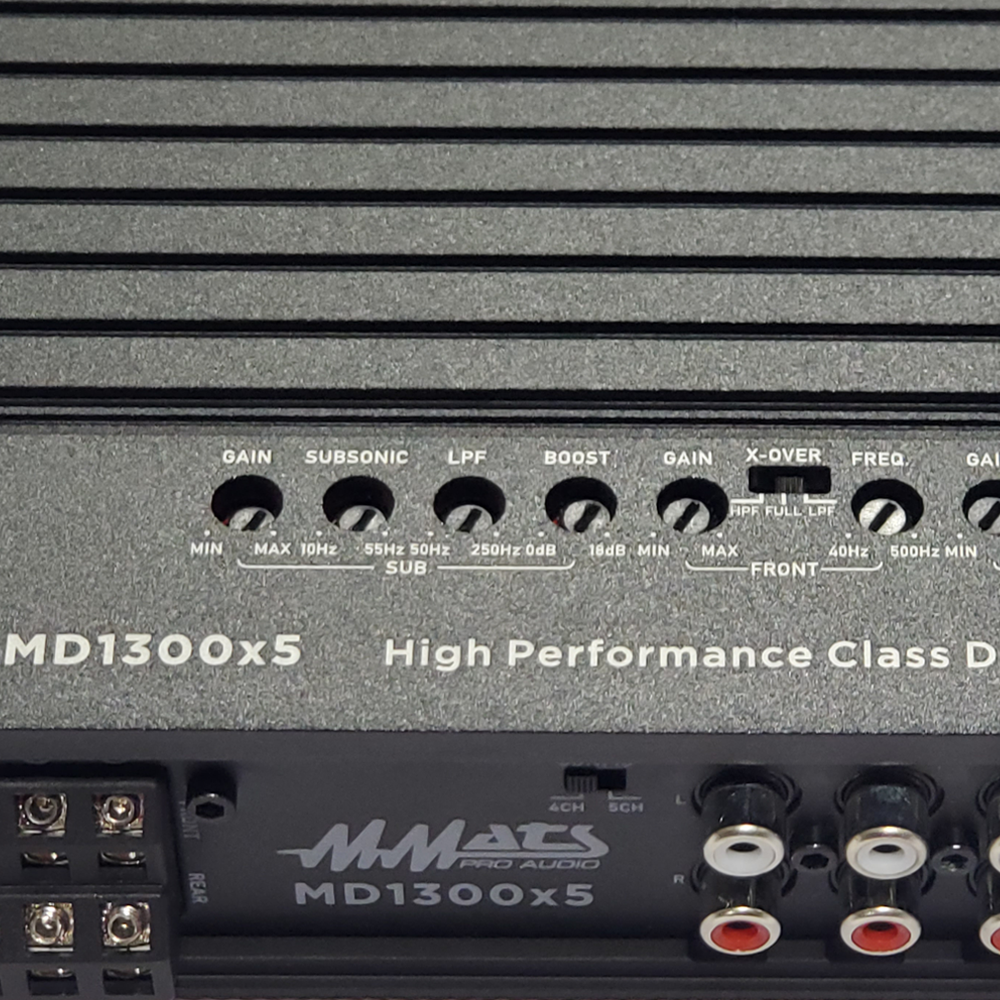

• Variable high-pass filter on the front and rear channels (40Hz to 500Hz @ 12dB/Octave
• Variable lowpass filter on the subwoofer channel (50Hz to 250Hz @ 24dB/Octave)
• Variable subsonic filter on the subwoofer channel (10Hz to 55Hz @ 24dB/Octave)
• Bass Boast (centered @ 45Hz +18dB gain)
• THD: <0.03% A-weighted
• S/N Signal-to-Noise Ratio @ -105dB Ref. at 1 watts/4 ohms

FEATURES:

• Run your entire vehicle with only one chassis!
• Full-range Stereo Class D Amplifier (mono-block 5^th channel sub only)
• 4-layer, 2-ounce copper PCB required to deliver the power efficiently.

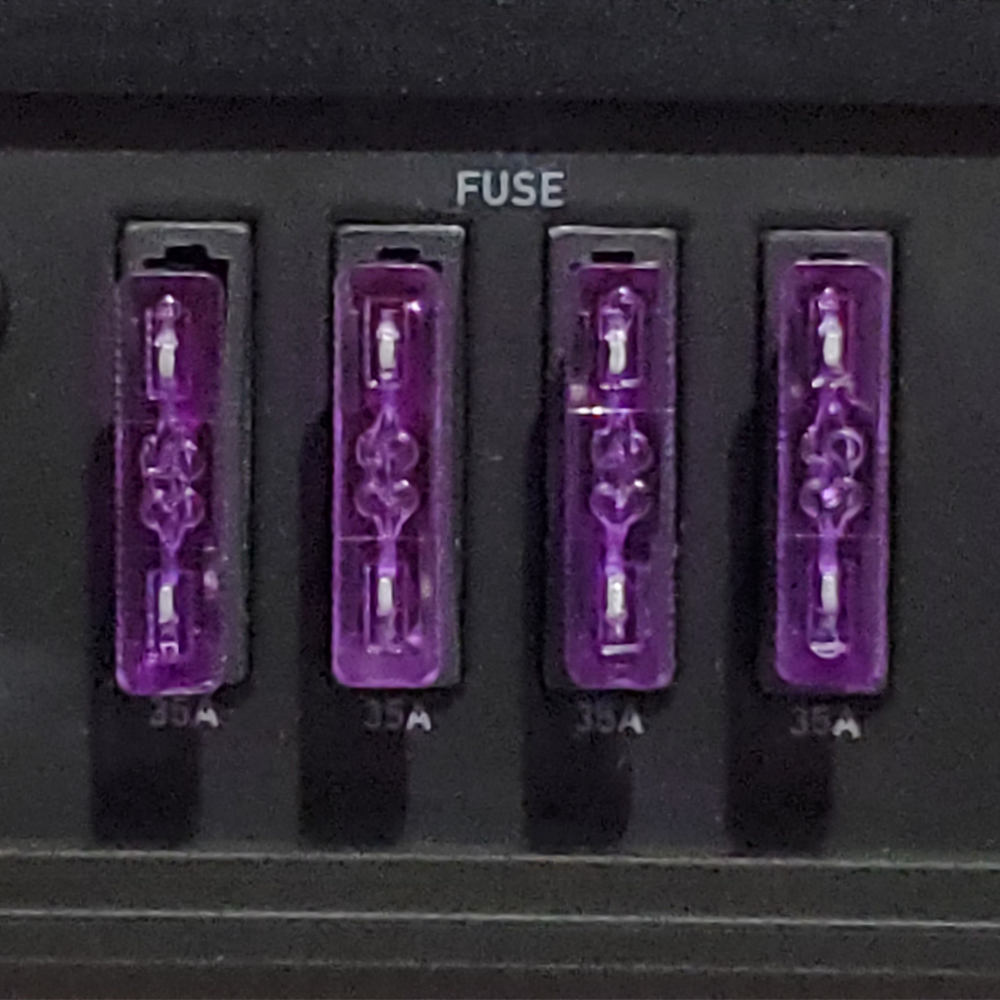

• 4 x 35amp onboard fuses (a true sign of “Real Power)
• 4-gauge high-power battery connector (wiring not included)
• 12-guage speaker connector for all 5 channels (wiring not included)

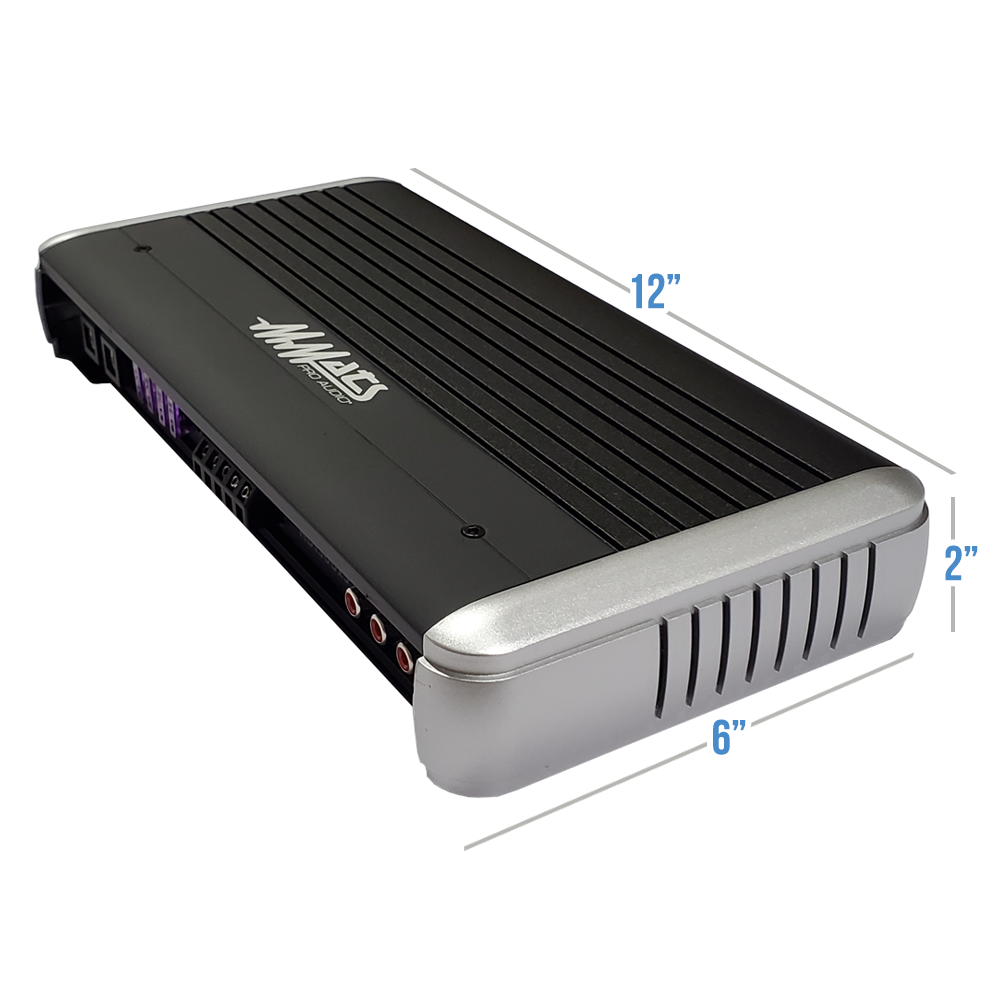

• Compact chassis: 12” x 6” x 2”
• ALL connections on one side of the amplifier for ease of installation
• MMATS factory one-year warranty (we fix them in-house!!)
• CEA 2006 Compliant: rated power with confidence.
