Diamond Audio | SKU:
MICRO5V2

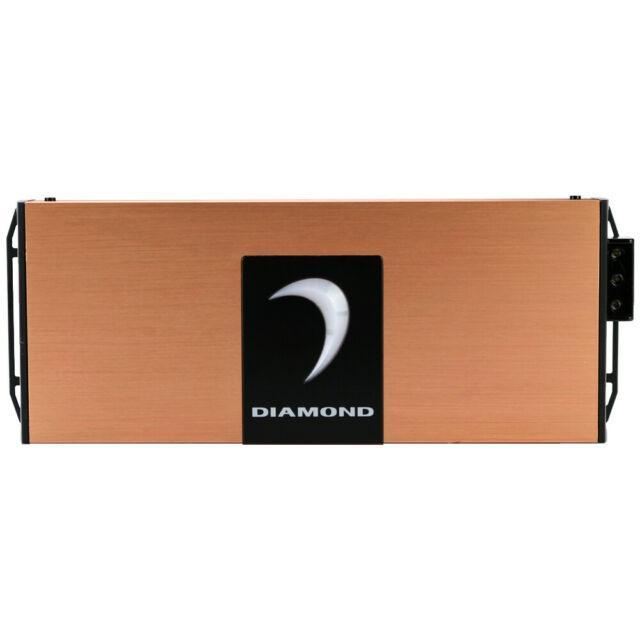

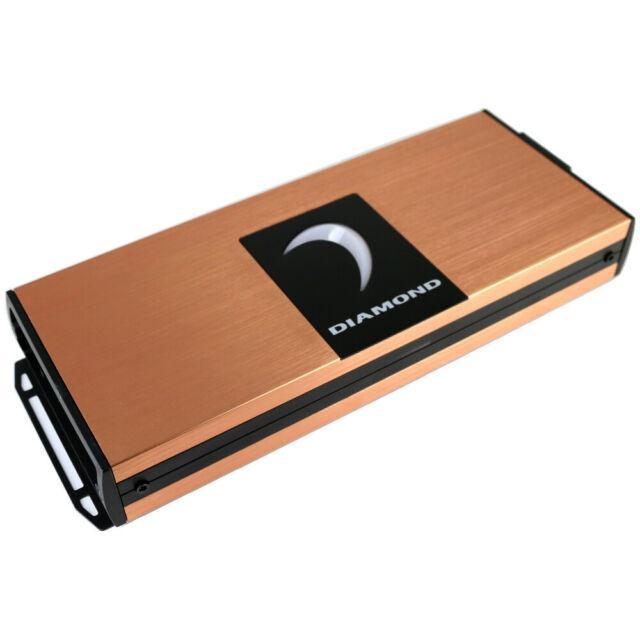

Diamond MICRO5V2 – MICRO 5-Channel Full Range Class D Amplifier
$569.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Diamond MICRO5V2 – MICRO 5-Channel Full Range Class D Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Diamond MICRO5V2 – MICRO 5-Channel Full Range Class D Amplifier
$569.99
Unit price
/
Unavailable
Description
Description
MICRO5V2 – MICRO 5-Channel Full Range Class D Amplifier
- Full Range Class D IR Chipset
- DirectFET Power Mosfet Output Stage
- SMD Technology on 4 layer Glass PC Board
- ICAD circuit provides superior overload protection
- Frequency response 20 Hz – 30kHz

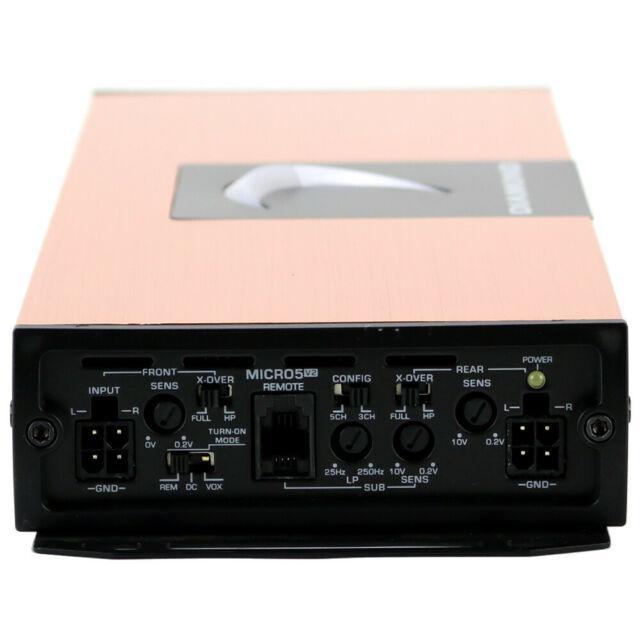

- Variable 12db crossovers
- Bridgeable / 2ch-4ch switch control
- BTR (BlueTooth Receiver enabled)
- MICRO Bass boost +12DB @45Hz

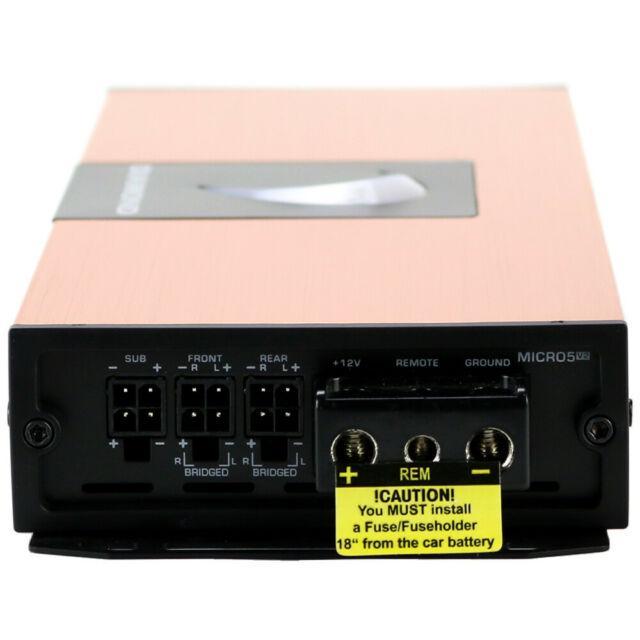

- Premium 8 and 4 gauge power connections
- Multi channels / Mono channel
Specifications
| RMS Power (2 Ω) | 150 W X 4/350 W X 1 |
| RMS Power (4 Ω) | 80 W X 4/200 W X 1 |
| Bridged (mono 4 Ω) | 300 W X 2/200 W X 1 |
| Topology | Full Range Class D |
| Power Supply | Full PWM |
| Power Supply Threshold | 10.0DVC – 17.0DVC |
| Idle Current | (0.7A) |
| THD 4 (1KHz @4Ω) | 0.5% |
| S-N Ratio (A-weighted @ 1W) | -85dBA |
| S-N Ratio (A-weighted @ 1W) | -101.1dBA |
| Input Sensitivity – Low Input Level | 200mV – 10.0V |
| Input Sensitivity – High Input Level | N/A |
| Input Impedance – Low Input Level | 20 KΩ |
| Impedance – High Input Level | 20 KΩ |
| Output Impedance | 0.018Ω |
| Damping Factor (50Hz @ 4Ω) | >70 |
| Bandwidth (-3dB) | 10Hz-35Hz |
| Crossover (-12 dB/ Oct) – Variable High Pass | Flat or Fixed 70Hz |
| Crossover (-12 dB/ Oct) – Variable Low Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) – Variable Sub-Sonic | N/A |
| Fuse Rating (ATC) | 60A |
| Dimentions- Length x Width x Height (inches) | 10.65″ x 4.0″ x 1.46″ |
| Dimentions- Length x Width x Height (mm) | 270.5 x 103 x 37.2 mm |
