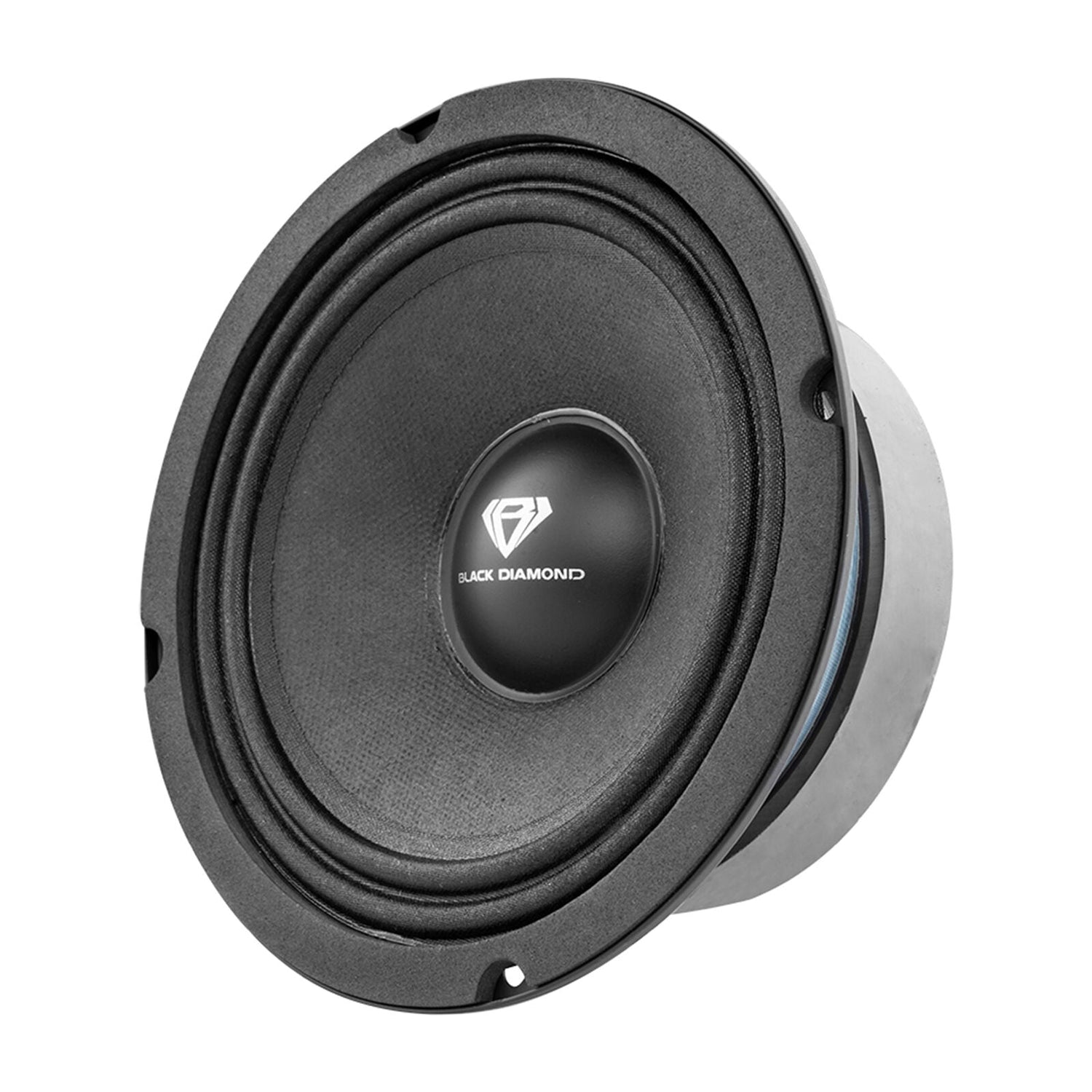

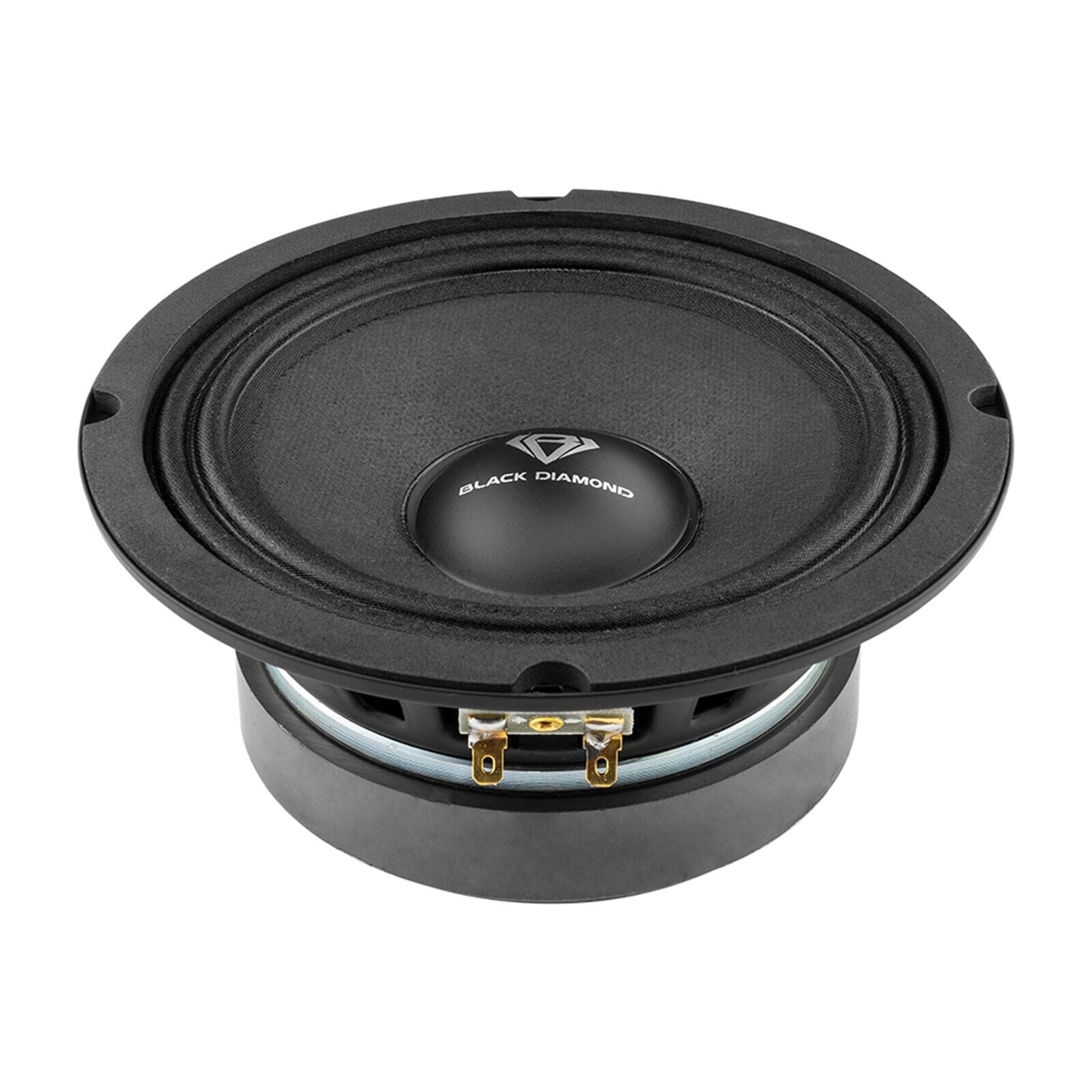

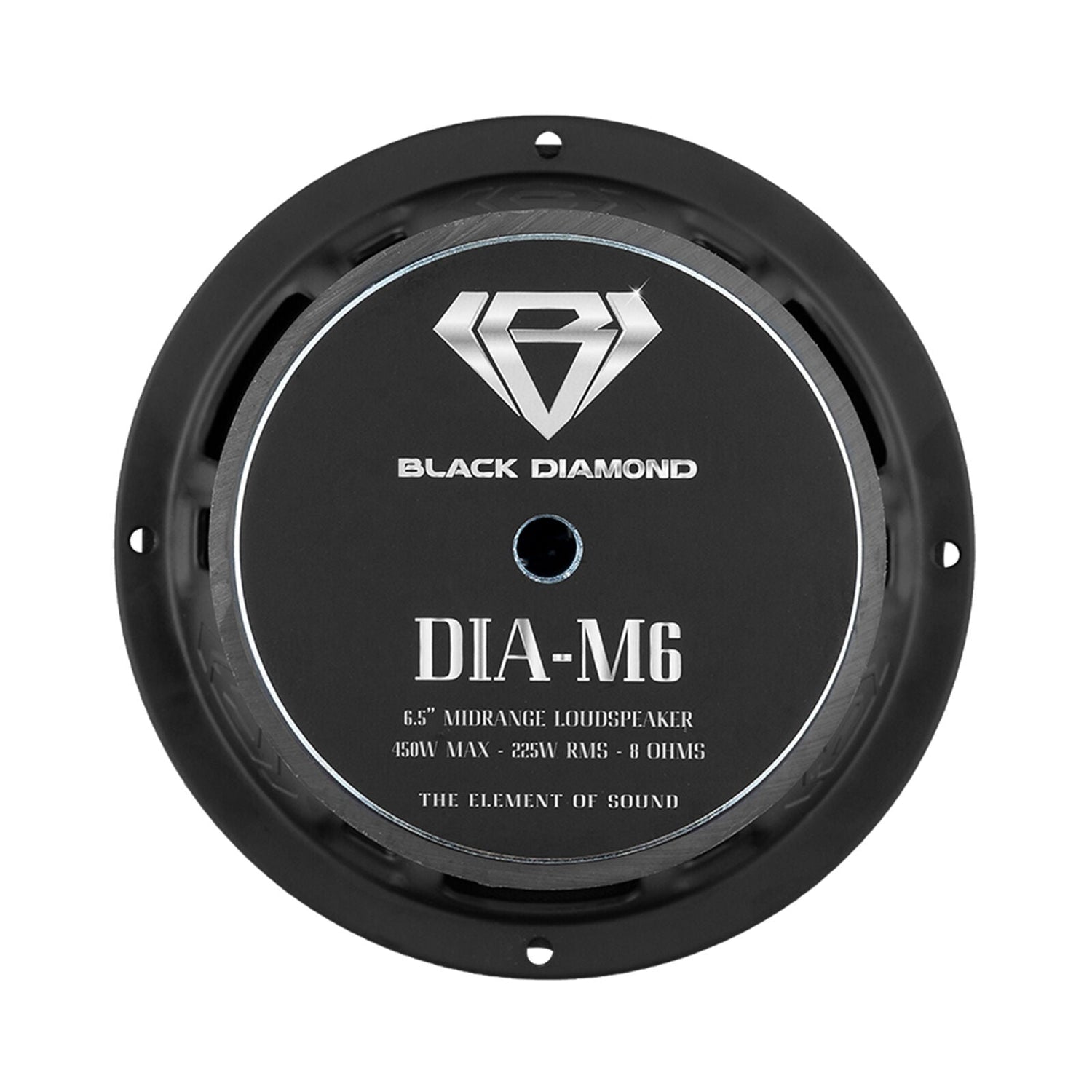

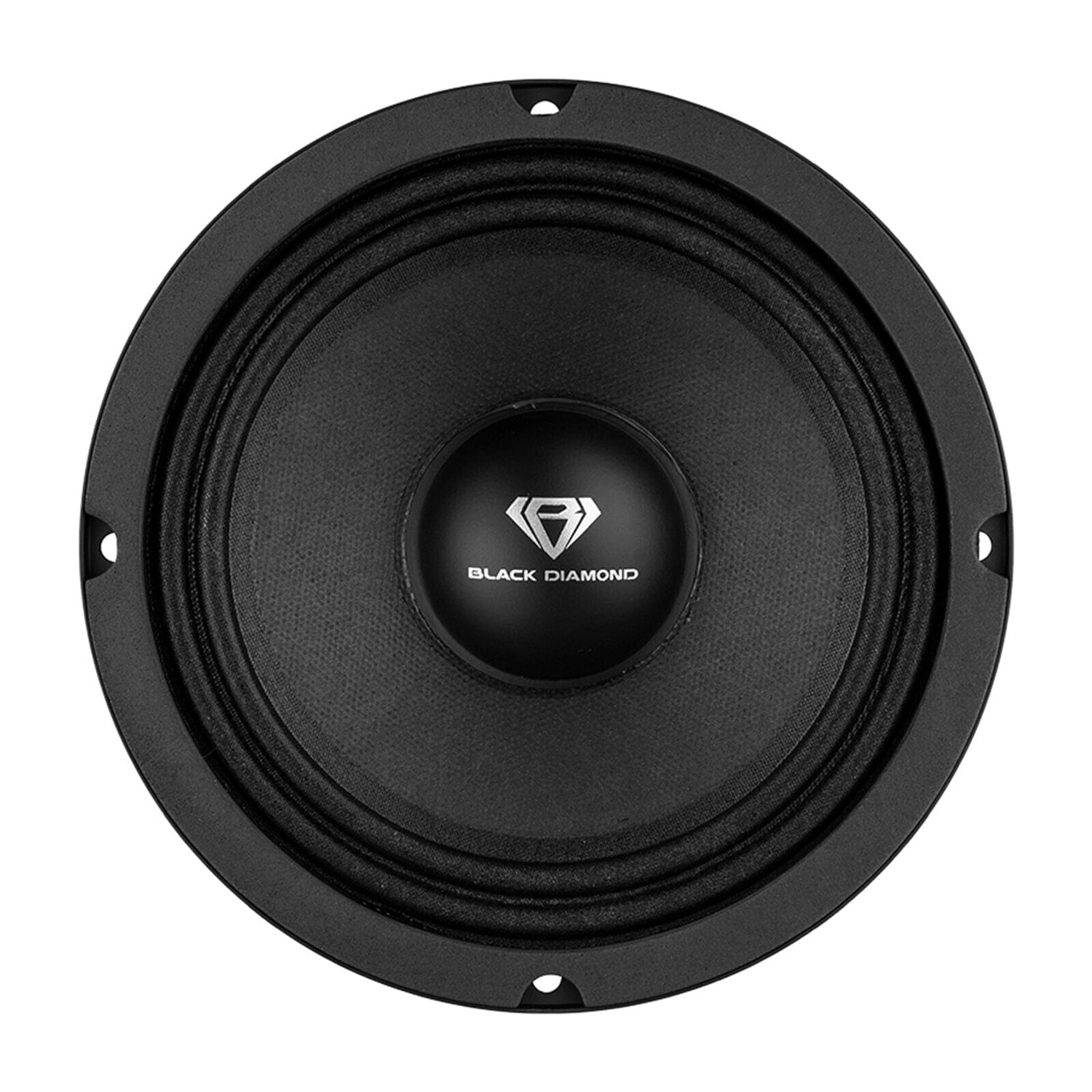

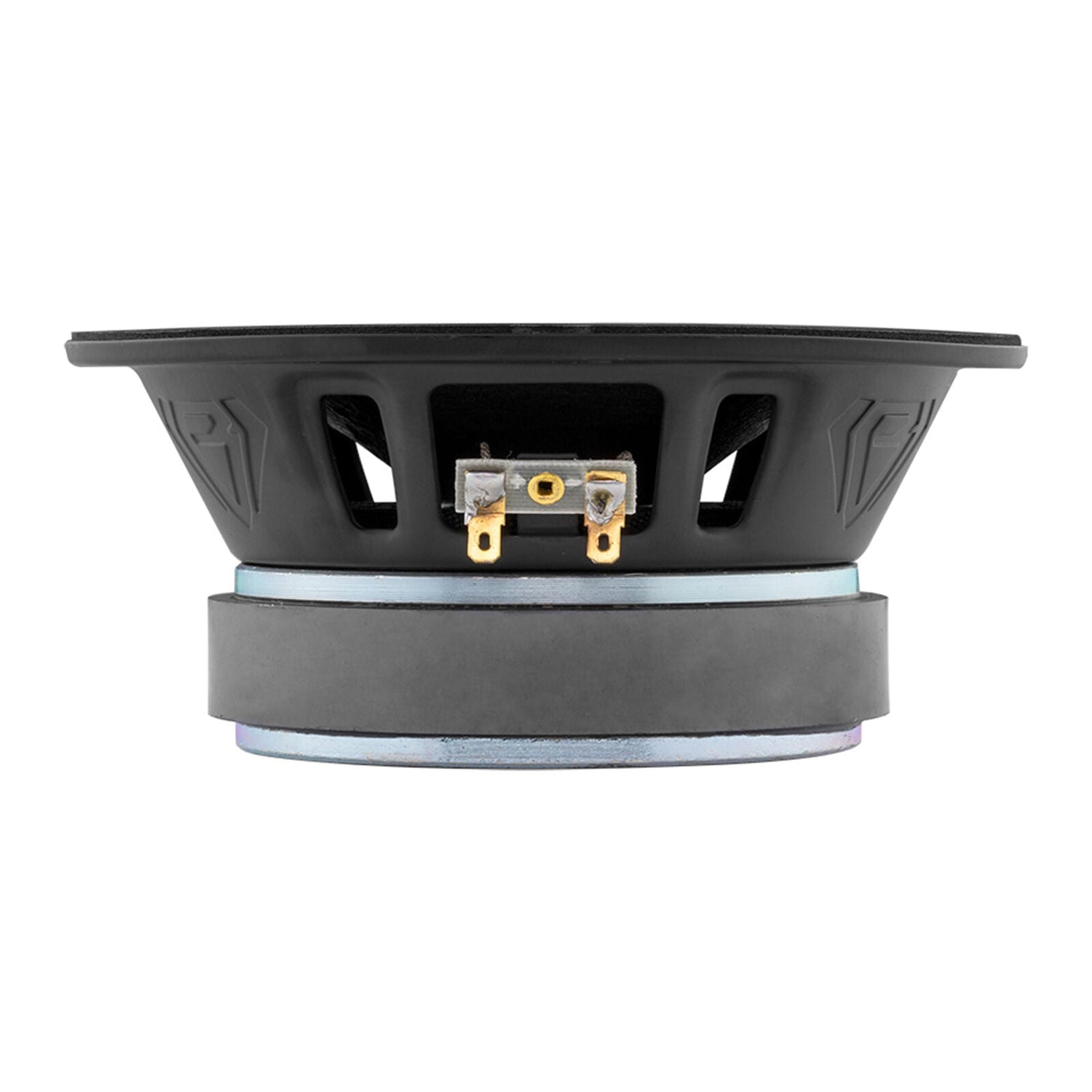

Black Diamond Dia-M6 6.5" Mid Range Loudspeaker with Bullet 450 Watts 8-Ohm

Black Diamond Car Audio 6.5" 450 Watts 8-Ohm Mid-Range Speaker DIA-M6

Black Diamond introduces a midrange that handles it all! A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals. This midrange has power you can count on-the DIA-M6 delivers an impressive 450 Watts Max Power with 225 Watts RMS at 8 Ohms, which is enough to tackle a full range of audio. Exclusive Black Diamond design. 30oz magnet with 1.5 inch high strength voice coil for high power applications.

This Listing Includes:
- (1) Black Diamond 6.5" Midrange Loudspeaker DIA-M6

GENERAL SPECIFICATIONS:
- Nominal Diameter: 6.5"
- RMS Power Handling: 225W
- MAX Power Handling: 450W
- Nominal Impedance: 8 Ohm
- Sensitivity: (1w/1m): 94 dB
- Frequency Response: 125Hz-8KHz
- Recommended Hi Pass Crossover: 140 Hz

MOTOR SPECIFICATIONS:
- Voice Coil Diameter: 1.5 / 38.6 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 30 oz
- Displacement Volume: 0.32L

THIELE & SMALL PARAMETERS:
- Equivalent Volume: Vas 2.654L
- Excursion (one way): Xmax 8.2mm
- Free Air Resonance: Fs 115Hz
- Mechanical Factor: Qms 9.856
- Electrical Factor: Qes 0.781
- Total Factor: Qts 0.678
- CD Resistance: Re 5.2 Ohms

MEASUREMENTS:
- Overall Diameter : 6.61
- Overall Depth: 2.83
- Front Mount Baffle Cutout: 5.72
- Mounting Depth: 2.60
- Motor Diameter: 4.72
- Gross Unit Weight: 5 lbs
