db Drive | SKU:
EX4.5

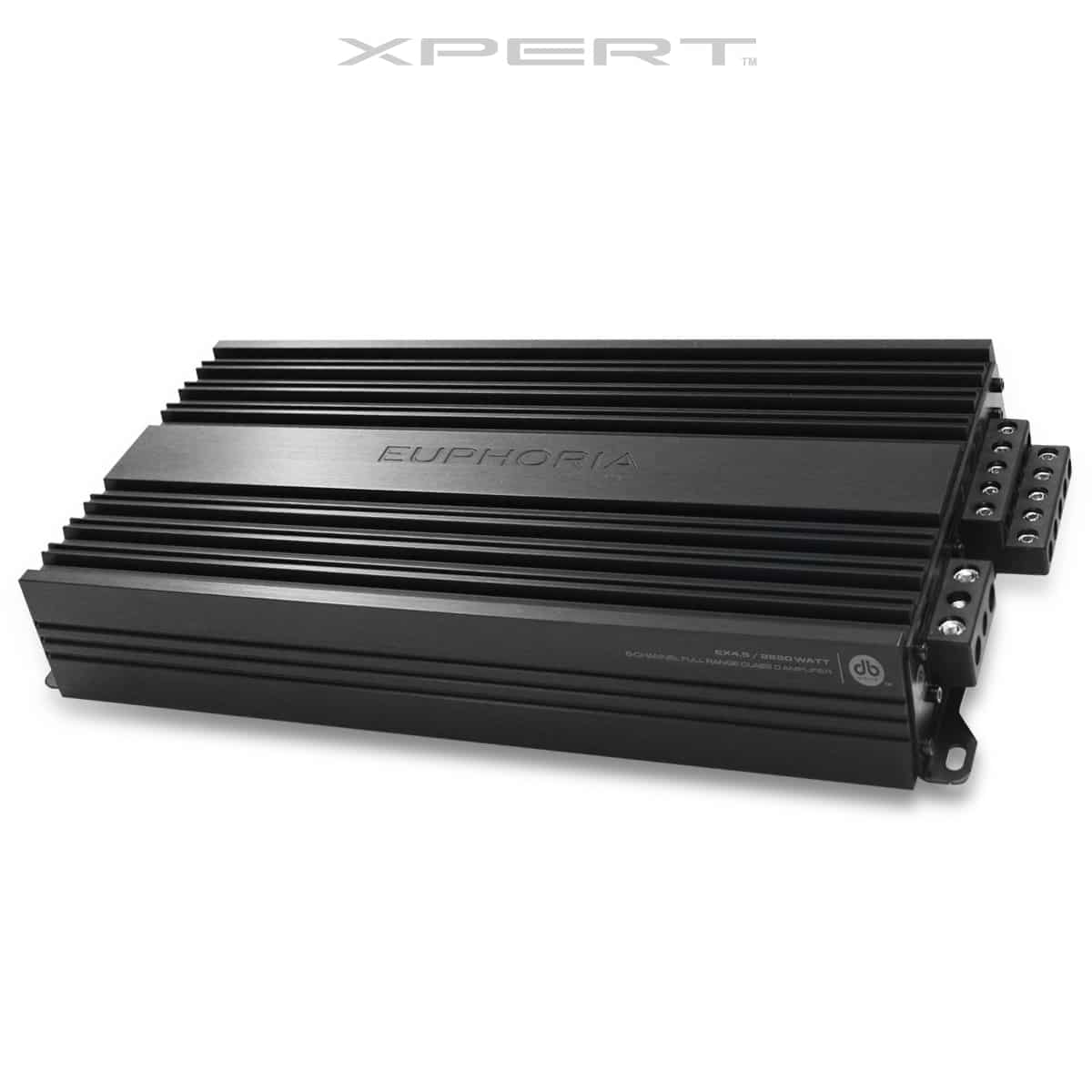

EUPHORIA XPERT EX4.5 AMPLIFIER
$0.00
Unit price
/
Unavailable
Shipping calculated at checkout.
EUPHORIA XPERT EX4.5 AMPLIFIER is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
EUPHORIA XPERT EX4.5 AMPLIFIER
$0.00
Unit price
/
Unavailable
Description
Description

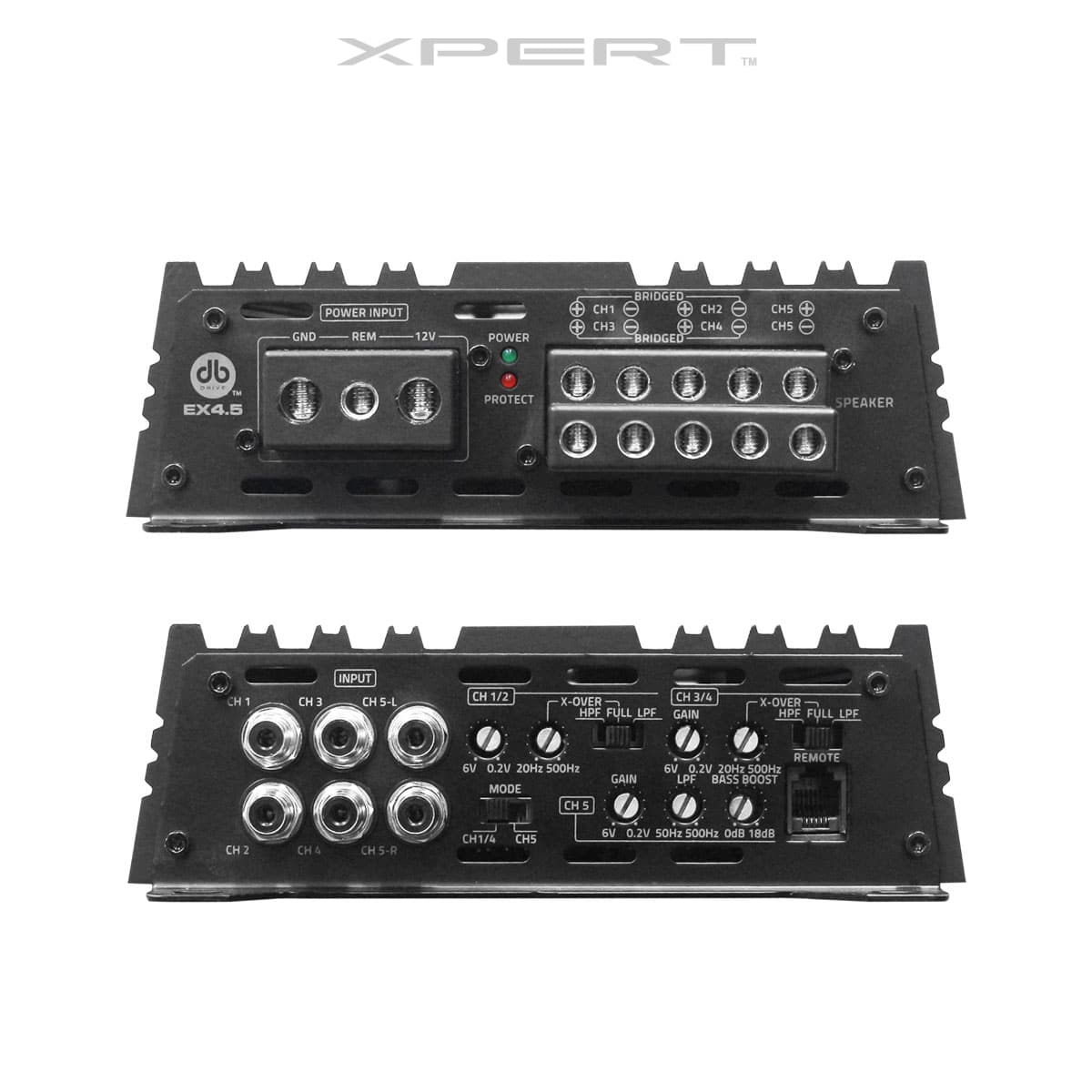

- Audiophile Grade tiffany RCA connectors
- Selectable Low-Pass, Band-Pass or High-Pass x-over
- High efficiency full range Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Speaker Short Circuit Protection
- Conformal coated moisture resistant PCB
| Length (A) | 13″ (330mm) |
| Width (B) | 6.9″ (174mm) |
| Height (C) | 2.11″ (53.6mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | 4 x 200 Watts + 1 x 725 @ 4Ω |
| 4 x 400 Watts + 1 x 1000 @ 2Ω | |
| PARAMETERS | |
|---|---|
| Frequency Response | 20Hz ~ 30KHz (CH1-CH4) /50Hz ~ 500HZ (CH5) |
| S/N Ratio | < 62dB |
| Low Level Input | 6V – 0.2V |
| High Pass Filter Variable | 20Hz ~ 500Hz (CH1-CH4) |
| Low Pass Filter Variable | 20Hz ~ 500Hz (CH1-CH4), 50Hz ~ 500HZ (CH5) |
| Working Voltage | 10V ~ 16V |
